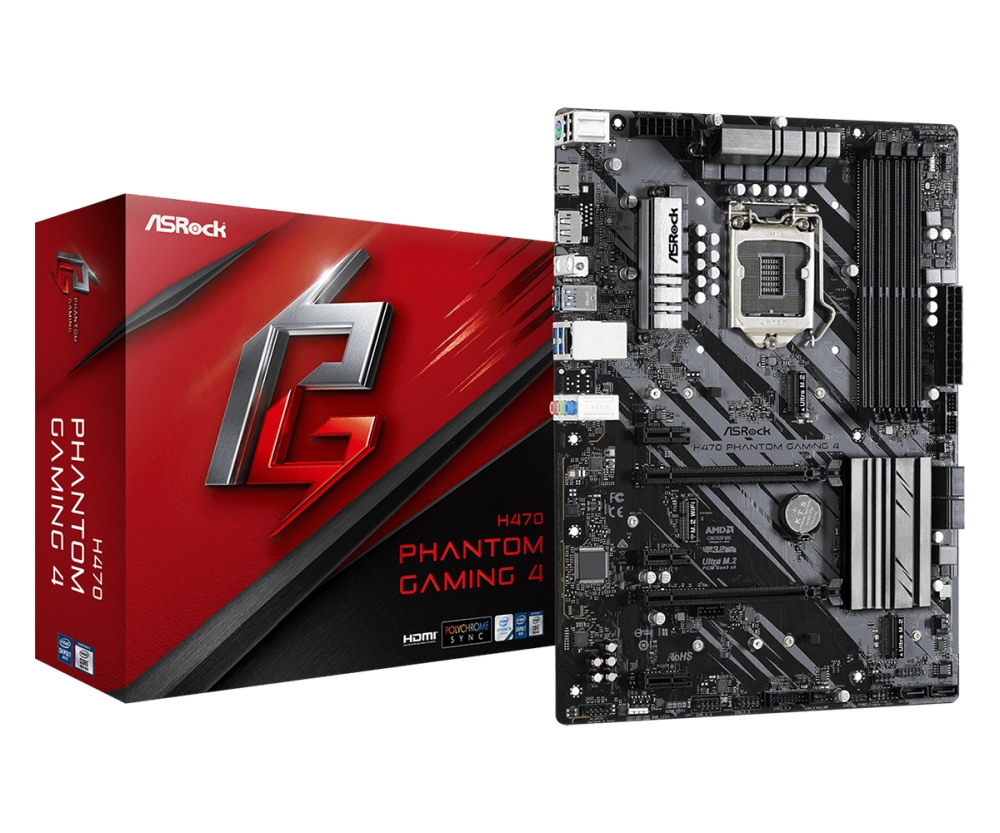

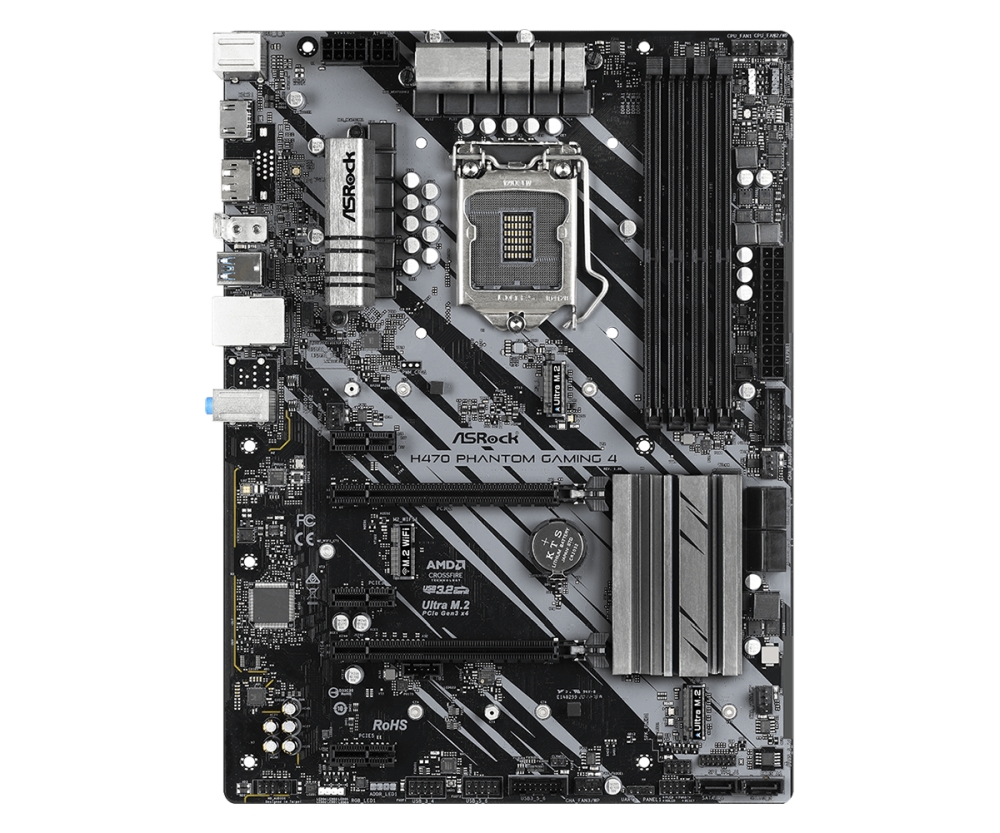

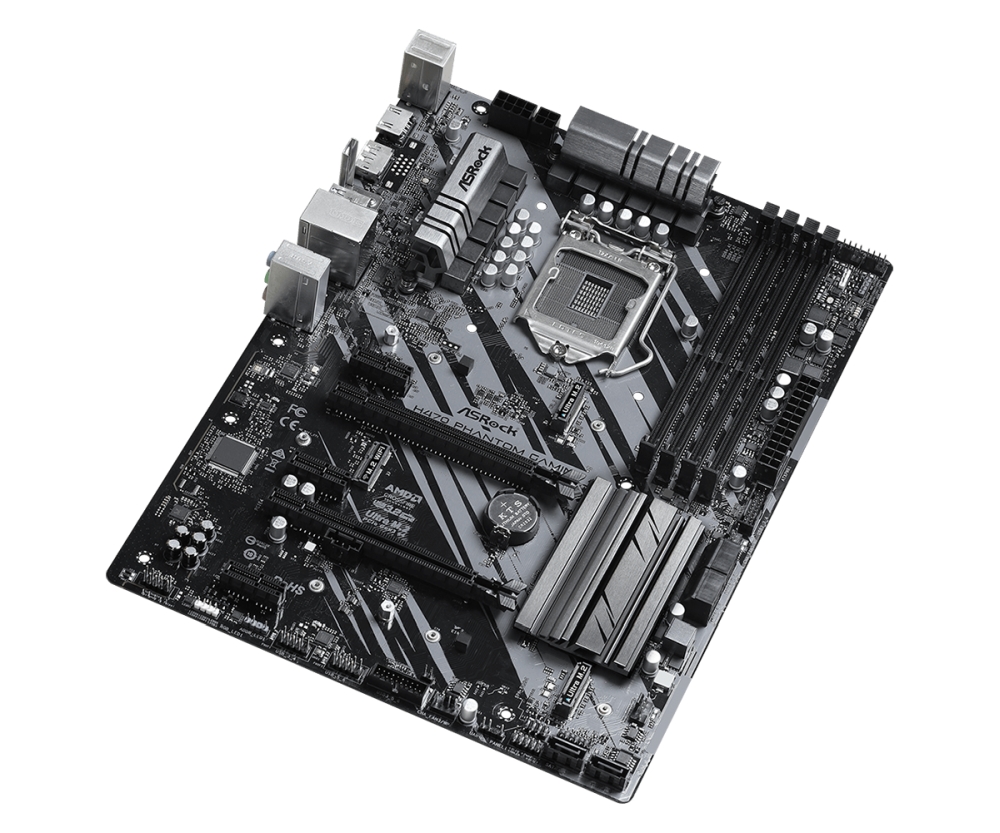

Дънна платка Asrock H470 Phantom Gaming 4

Name: Дънна платка Asrock H470 Phantom Gaming 4
Brand: ASROCK
SKU: ASROCK-90-MXBD80-A0UAYZ
Price: 195.00000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXBD80-A0UAYZ

danna-platka-asrock-h470-phantom-gaming-4-asrock-90-mxbd80-a0uayz

0 ревюта | 0 въпроса

Чипсет Intel H470
Аудио 7.1 CH HD Audio with Content Protection Premium Blu-ray Audio support Supports Surge Protection PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio
Слотове 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2) dual at x16 (PCIE2) / x4 (PCIE4) 3 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX and CrossFireX
Форм-фактор ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm Solid Capacitor design
Мрежа Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE

Сравни

195.00 лв.

99.70 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Мрежа:

Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE

Операционна система:

Microsoft Windows 10 64-bit

Конектори:

1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector 2 x USB 2.0 Headers 2 x USB 3.2 Gen1 Headers

Специални функции:

ASRock USB 3.2 Gen2 ASRock Super Alloy ASRock Intel 4-Layer Memory POOL ASRock Ultra M.2 ASRock POST Status Checker ASRock Full Spike Protection ASRock Live Update &amp APP Shop

Серия:

Phantom Gaming

Интерфейс:

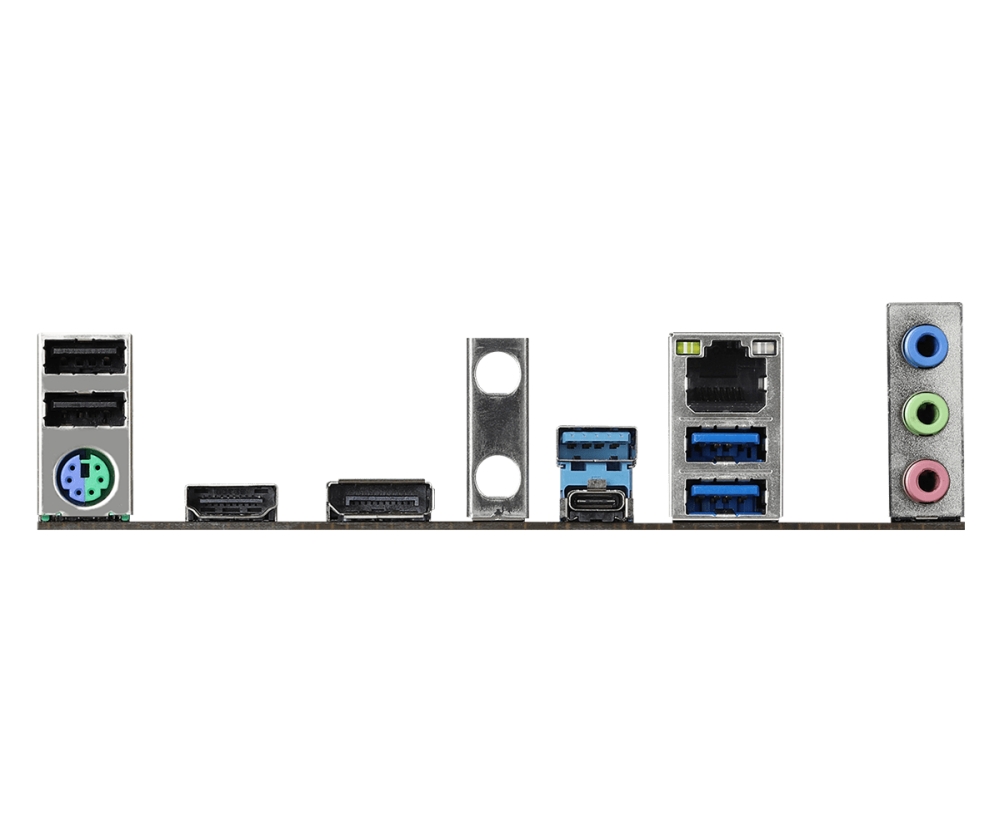

1 x Antenna Bracket 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port 1 x USB 3.2 Gen2 Type-C Port 2 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED

M.2 слот:

1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key

Софтуер:

ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock Key Master ASRock XFast LAN

Слотове:

2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2) dual at x16 (PCIE2) / x4 (PCIE4) 3 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX and CrossFireX

Процесор:

Intel 1200

Аудио:

7.1 CH HD Audio with Content Protection Premium Blu-ray Audio support Supports Surge Protection PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio

Форм-фактор:

ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm Solid Capacitor design

Памет, слотове:

4 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Max. capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment

Чипсет:

Intel H470

Описание

Дънна платка Asrock H470 Phantom Gaming 4

Виж повече caret
