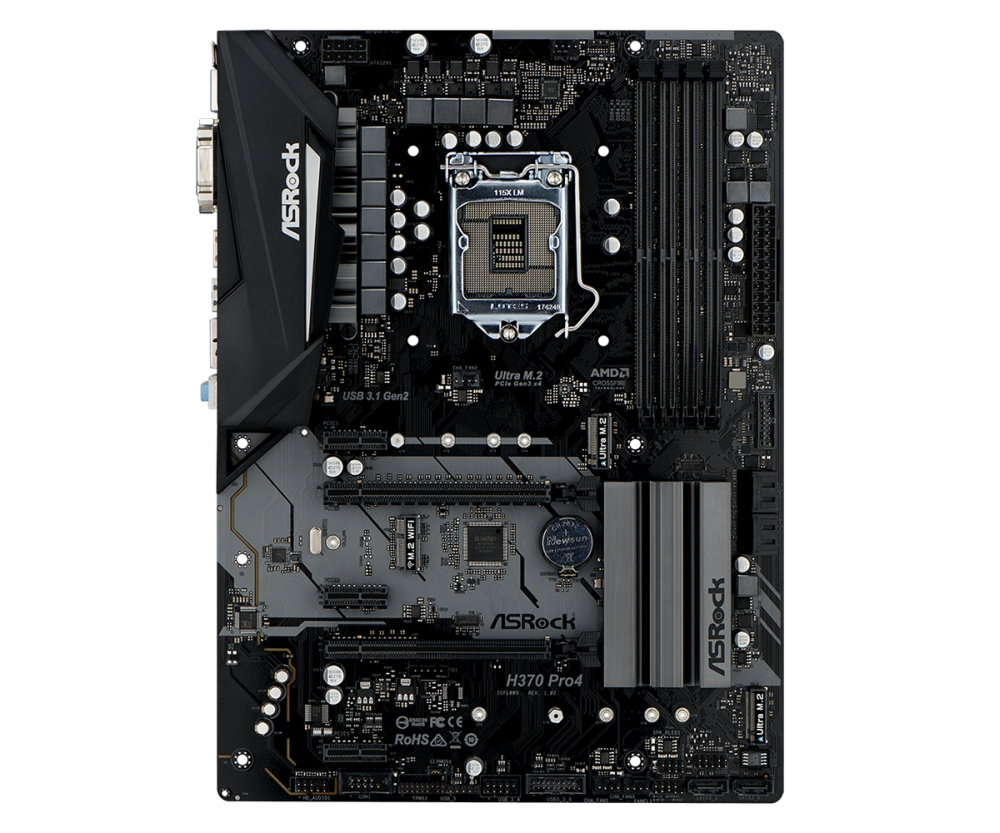

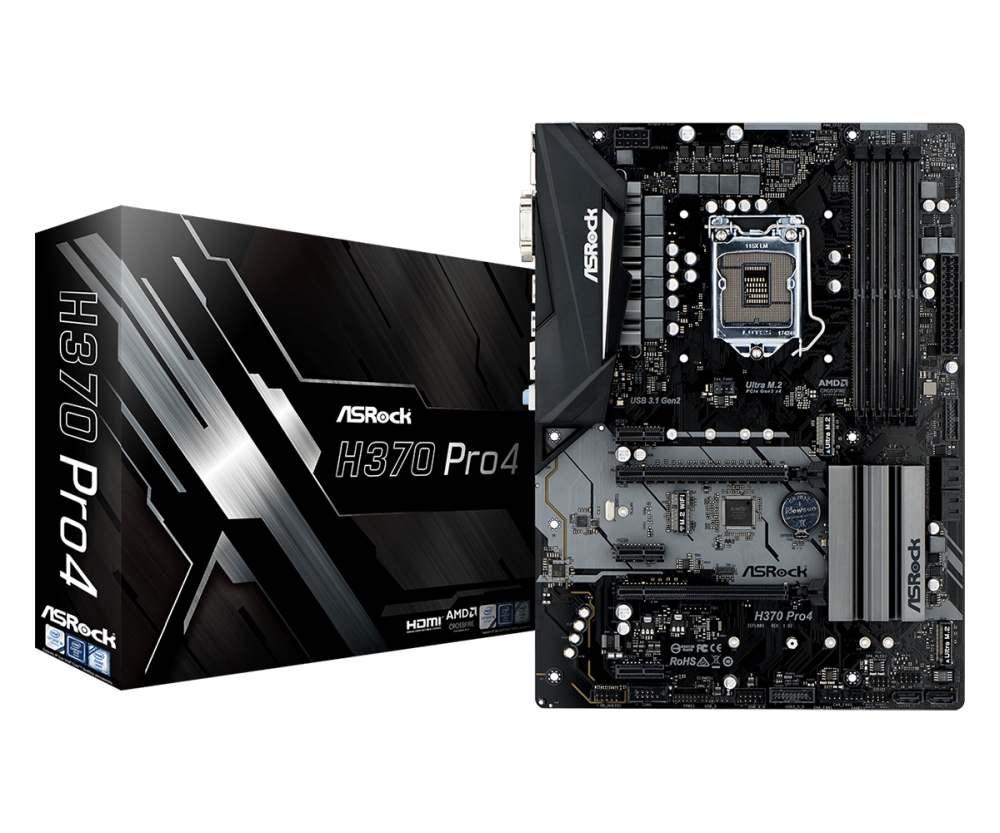

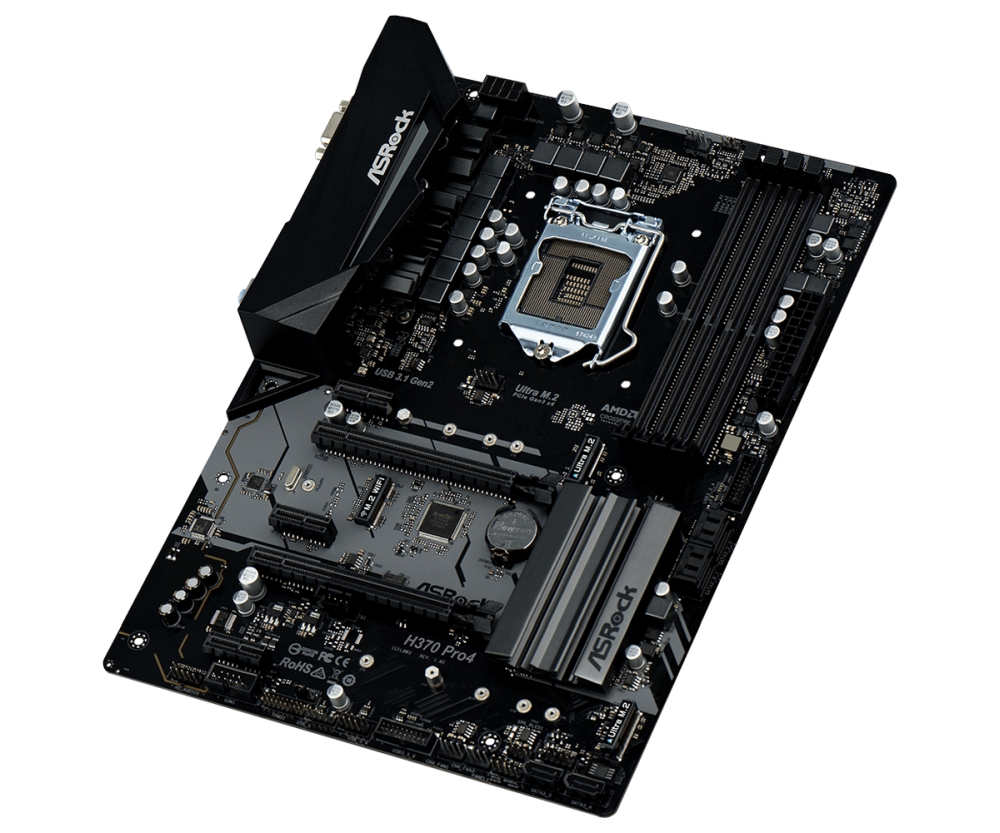

Дънна платка Asrock H370 PRO 4

Name: Дънна платка Asrock H370 PRO 4
Brand: ASROCK
SKU: ASROCK-90-MXB6U0-A0UAYZ
Price: 181.30000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXB6U0-A0UAYZ

danna-platka-asrock-h370-pro-4-asrock-90-mxb6u0-a0uayz

0 ревюта | 0 въпроса

Памет, слотове 4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules
Конектори 1 x COM Port Header, 1 x TPM Header, 1 x Power LED and Speaker Header, 1 x CPU Fan Connector, 2 x USB 2.0 Headers, 2 x USB 3.1 Gen1 Headers, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector
Мрежа Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Интерфейс 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 2 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks
Безжична мрежа -

Сравни

181.30 лв

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Чипсет:

Intel H370

Операционна система:

Microsoft Windows 10 64-bit

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment

Форм-фактор:

ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm, Solid Capacitor design

Памет, слотове:

4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules

Процесор:

Supports 9th and 8th Gen Intel Core processors (Socket 1151)

Слотове:

2 x PCI Express 3.0 x16 Slots, 3 x PCI Express 3.0 x1 Slots, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNV

Аудио:

7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, ELNA Audio Caps

Специални функции:

ASRock USB 3.1 Gen2, ASRock Super Alloy, ASRock Intel 4-Layer Memory POOL, ASRock Ultra M.2, ASRock Full Spike Protection, ASRock Live Update &amp APP Shop

Софтуер:

ASRock A-Tuning , ASRock XFast LAN

Интерфейс:

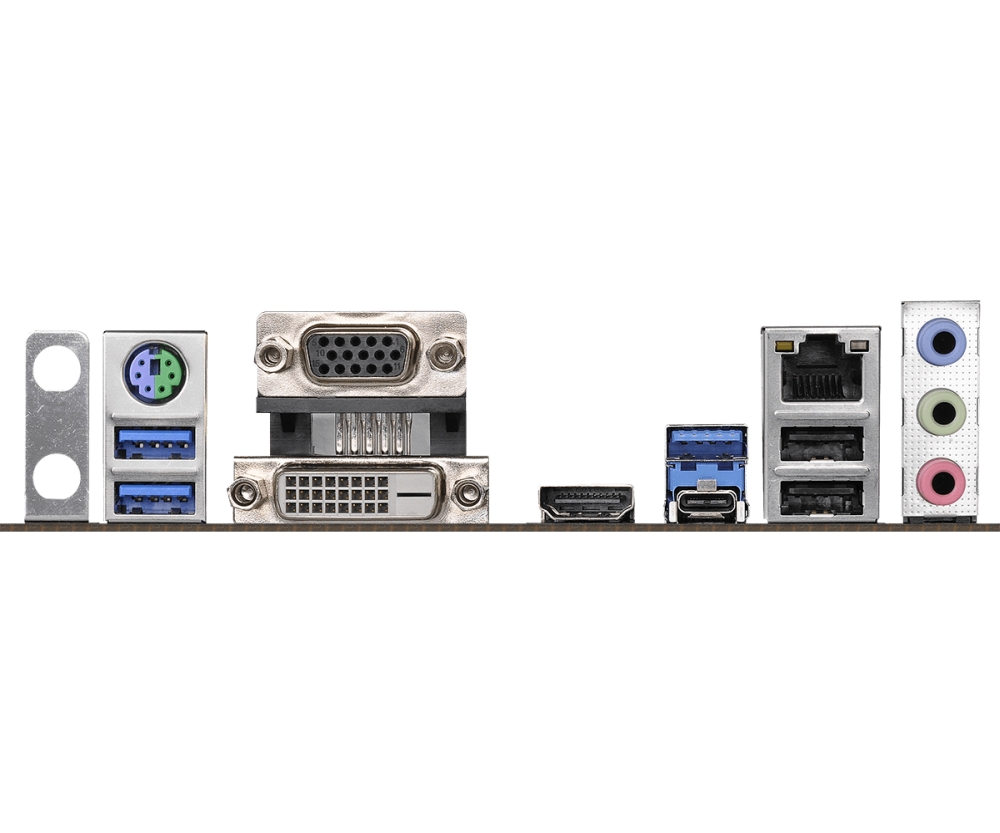

2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 2 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks

Серия:

PRO

Конектори:

1 x COM Port Header, 1 x TPM Header, 1 x Power LED and Speaker Header, 1 x CPU Fan Connector, 2 x USB 2.0 Headers, 2 x USB 3.1 Gen1 Headers, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector

Мрежа:

Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

M.2 слот:

1xUltra M.2 (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s and M.2 PCI Express up to Gen3x4 (32 Gb/s) 1xUltra M.2 (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s and M.2 PCI Express up to Gen3 x4 (32 Gb/s

Безжична мрежа:

Описание

Дънна платка Asrock H370 PRO 4
