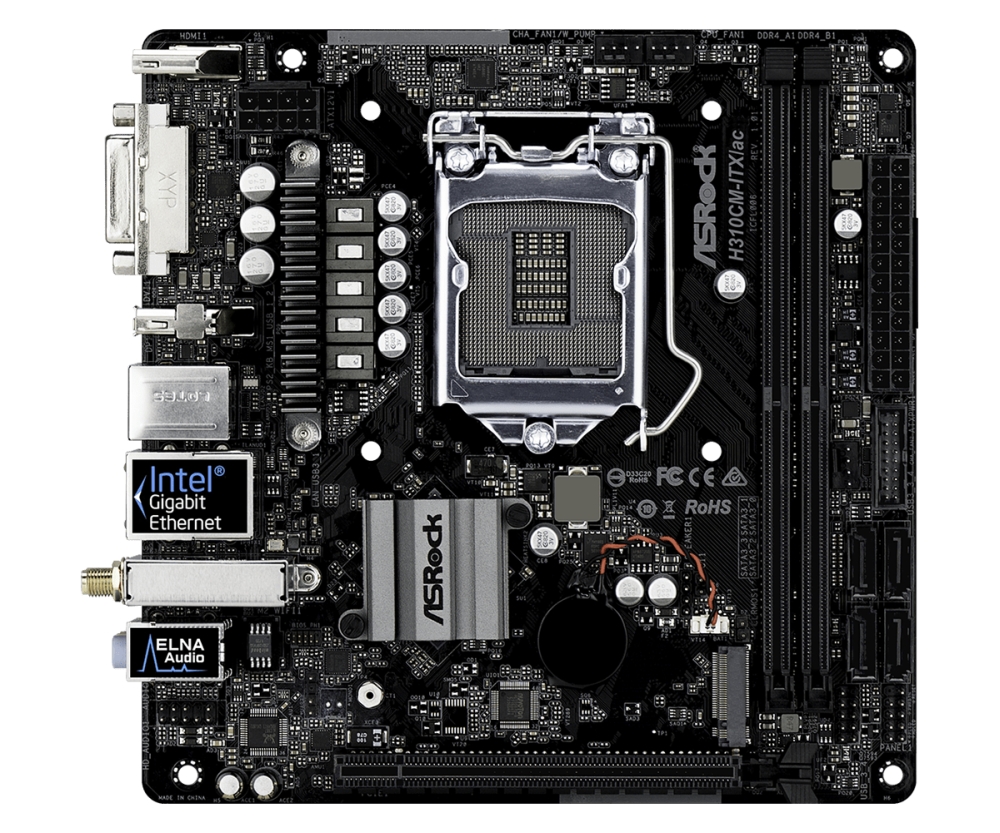

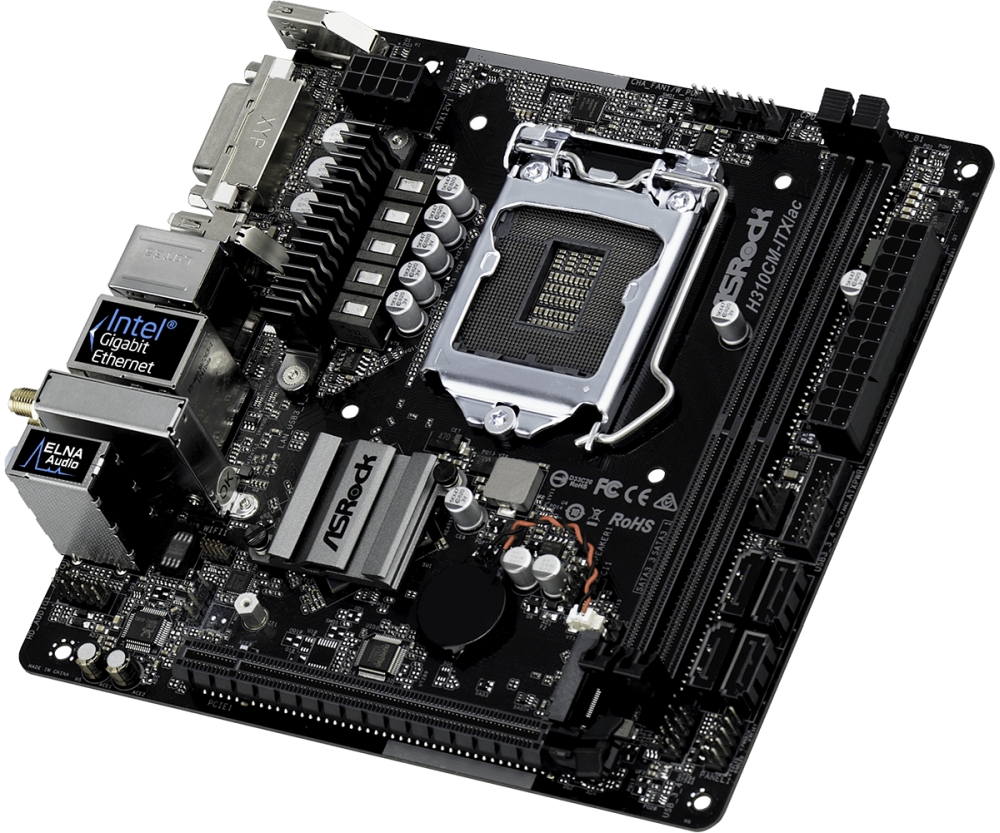

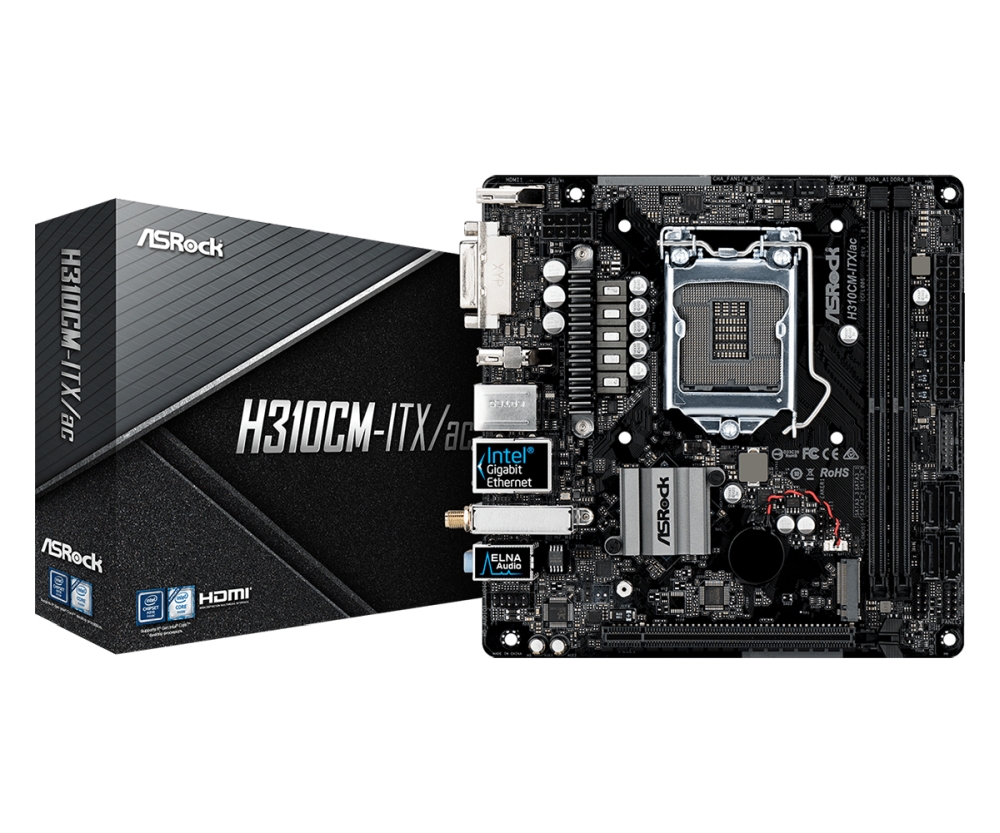

Дънна платка Asrock H310CM-ITX/AC

Name: Дънна платка Asrock H310CM-ITX/AC
Brand: ASROCK
SKU: ASROCK-90-MXB7A0-A0UAYZ
Price: 129.18000000000000682121 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXB7A0-A0UAYZ

danna-platka-asrock-h310cm-itx-ac-asrock-90-mxb7a0-a0uayz

0 ревюта | 0 въпроса

Мрежа Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
M.2 слот 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
Форм-фактор Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm, Solid Capacitor design
Аудио 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps
Чипсет Intel H310

Сравни

155.02 лв.

(-17%)

79.26 €

129.18 лв.

66.05 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Гаранция:

24 месеца

Безжична мрежа:

Intel 802.11ac WiFi Module, Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports high speed wireless connections up to 433Mbps, Supports Bluetooth 4.2 / 3.0 + High speed class II

Аудио:

7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps

Чипсет:

Intel H310

Конектори:

1 x Chassis Intrusion Header, 1 x CPU Fan Connector, 1 x Chassis Fan Connector, 1 x USB 2.0 Header, 1 x USB 3.1 Gen1 Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector

Мрежа:

Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Софтуер:

ASRock A-Tuning, ASRock XFast LAN

Интерфейс:

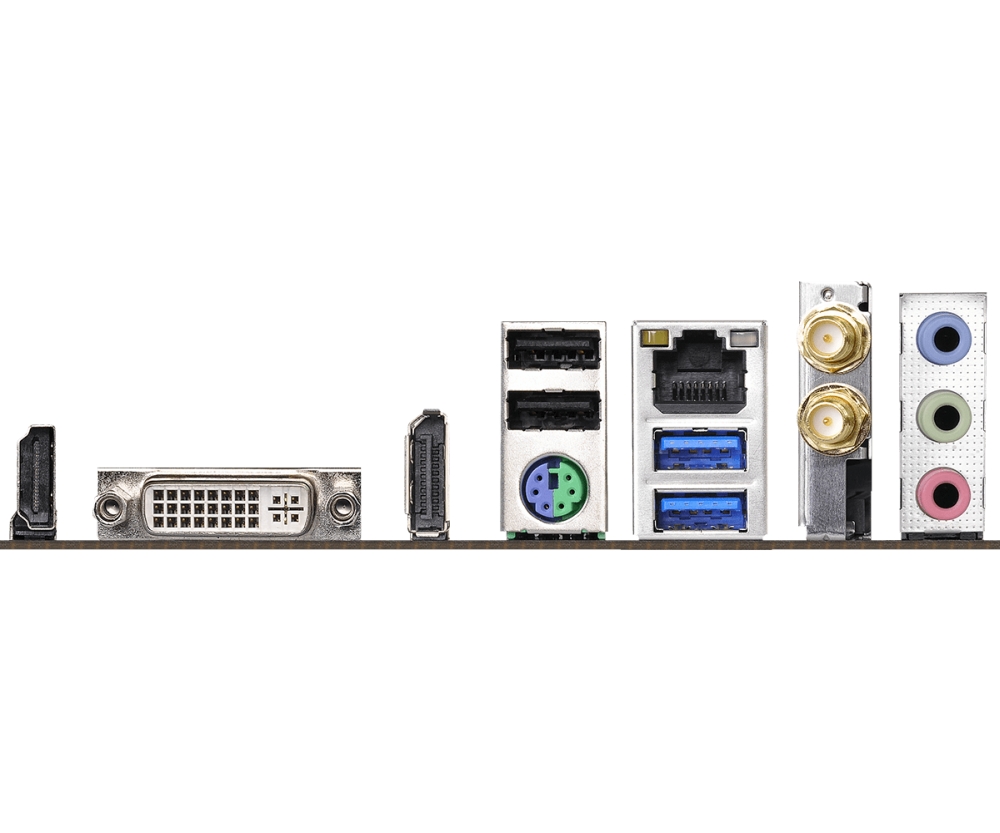

2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x DVI-I Port, 1 x HDMI Port, 1 x DisplayPort 1.2, 2 x USB 2.0 Ports, 2 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове:

1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

Серия:

ITX

M.2 слот:

1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)

Форм-фактор:

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm, Solid Capacitor design

Специални функции:

ASRock Super Alloy, Intel 802.11ac WiFi, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update &amp APP Shop

Памет, слотове:

2 x DDR4 DIMM Slots, Max. capacity of system memory: 32GB, Dual Channel DDR4 Memory Technology, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules

Процесор:

Supports 9th and 8th Gen Intel Core processors (Socket 1151)

Операционна система:

Microsoft Windows 10 64-bit

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Описание

Дънна платка Asrock H310CM-ITX/AC
