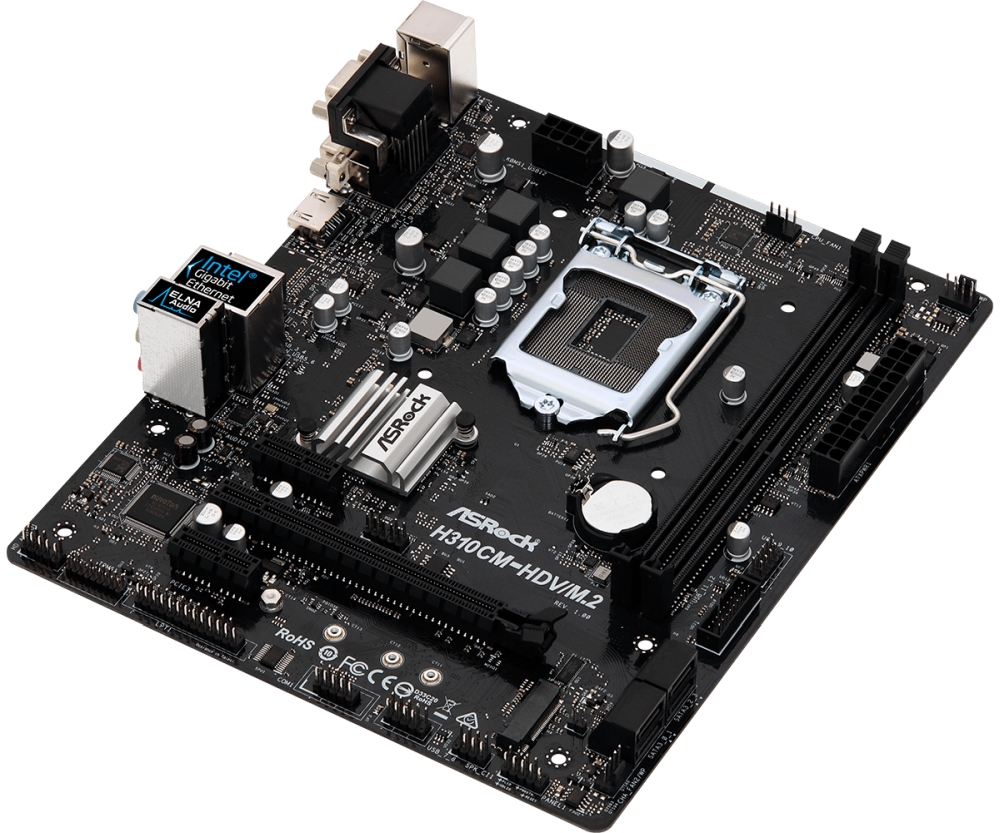

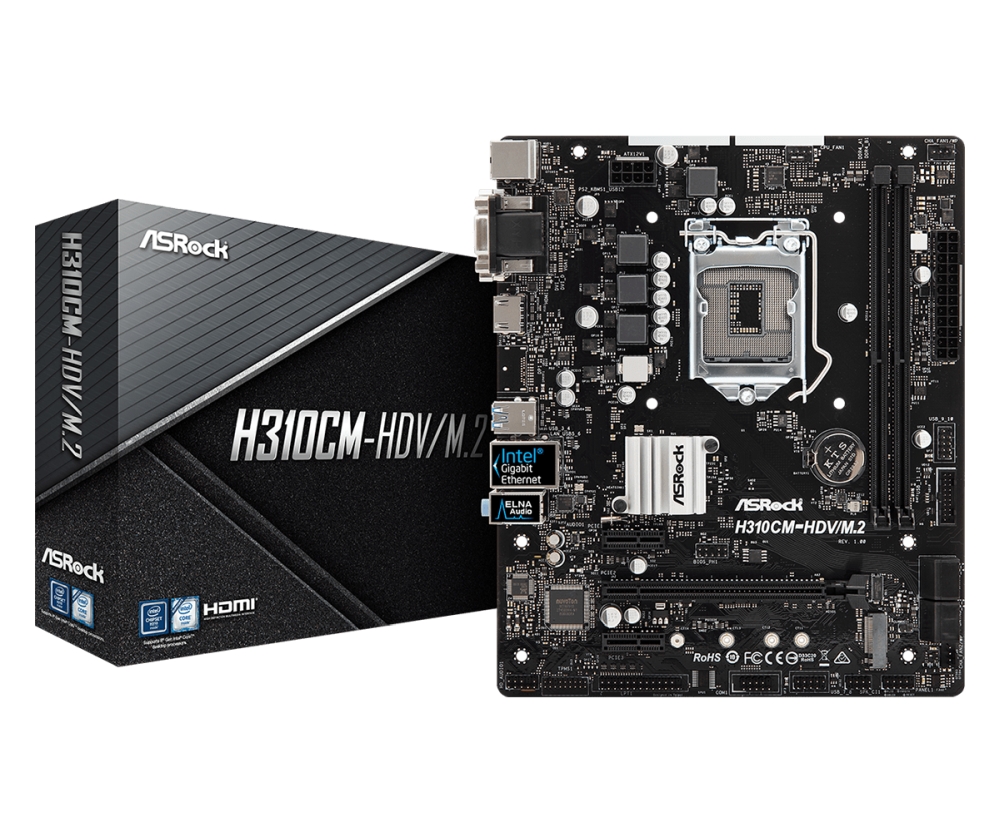

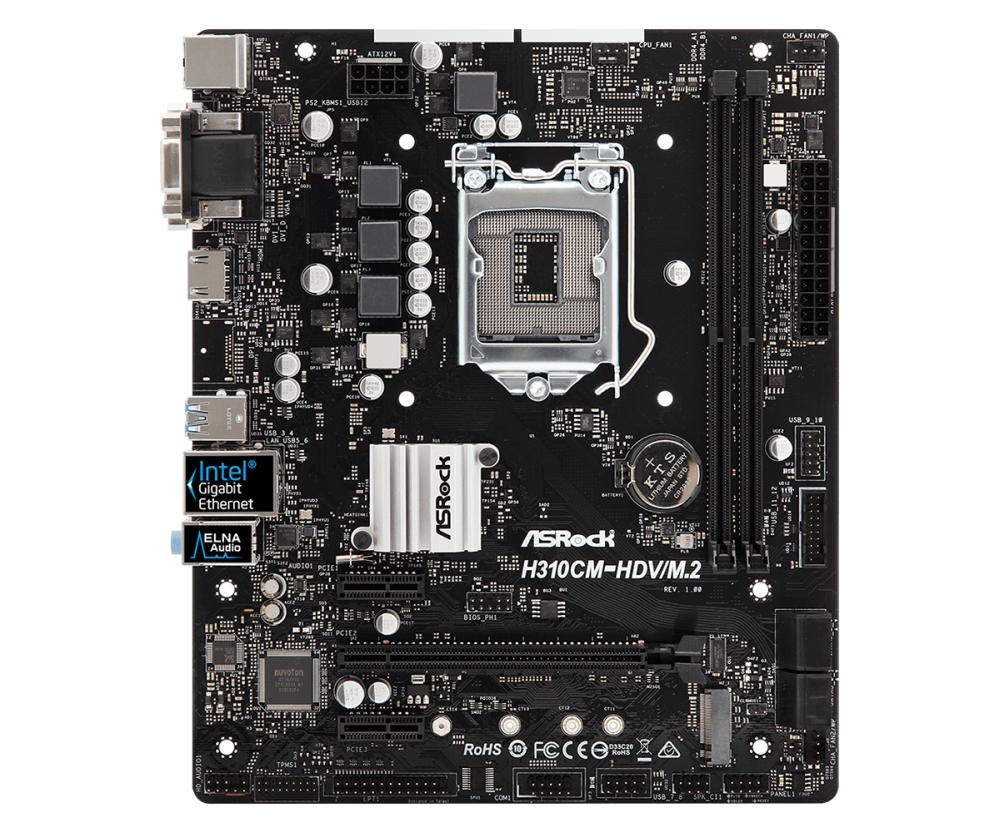

Дънна платка Asrock H310CM-HDV/M.2

Name: Дънна платка Asrock H310CM-HDV/M.2
Brand: ASROCK
SKU: ASROCK-90-MXB8M0-A0UAYZ
Price: 109.10000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXB8M0-A0UAYZ

danna-platka-asrock-h310cm-hdv-m-2-asrock-90-mxb8m0-a0uayz

0 ревюта | 0 въпроса

Процесор Supports 9th and 8th Gen Intel Core processors (Socket 1151)
Мрежа Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Конектори 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector, 2 x USB 2.0 Headers, 1 x USB 3.1 Gen1 Header, 1 x 24 pin ATX Power Connector
Аудио 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps
Софтуер ASRock A-Tuning, ASRock XFast LAN

Сравни

109.10 лв.

55.78 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Процесор:

Supports 9th and 8th Gen Intel Core processors (Socket 1151)

Слотове:

1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 2 x PCI Express 2.0 x1 Slots

Мрежа:

Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Софтуер:

ASRock A-Tuning, ASRock XFast LAN

Операционна система:

Microsoft Windows 10 64-bit

Серия:

HDV

Чипсет:

Intel H310

Интерфейс:

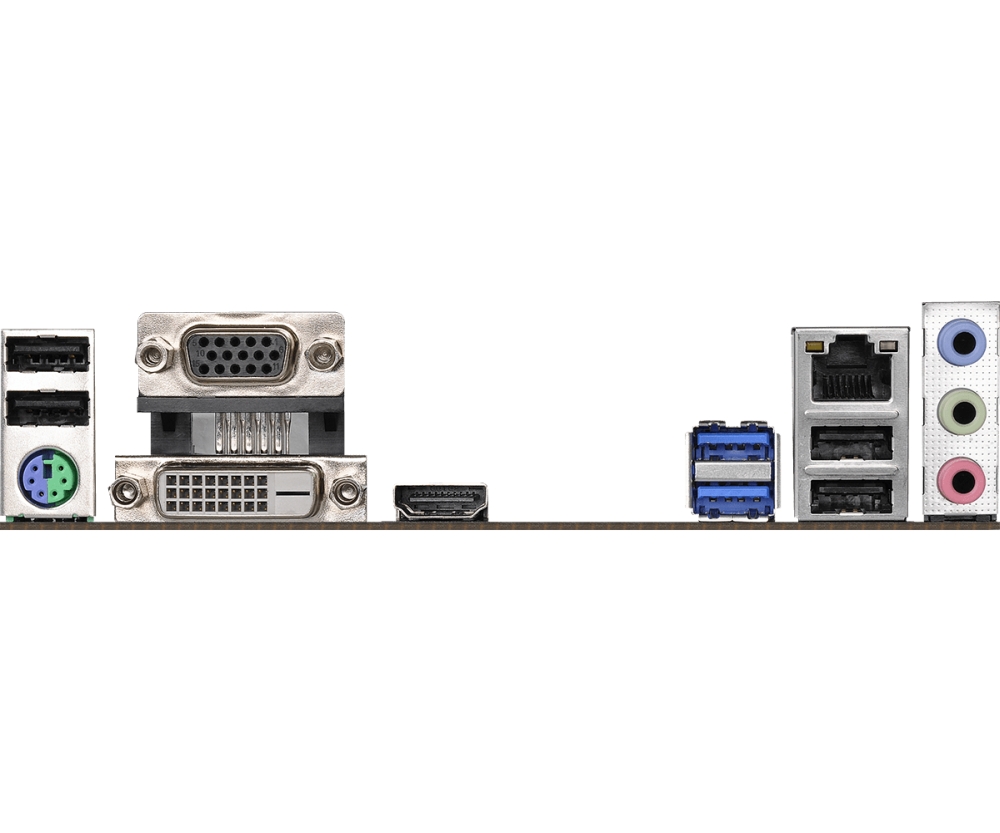

1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 4 x USB 2.0 Ports, 2 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks

Специални функции:

ASRock Super Alloy, ASRock Full Spike Protection, ASRock Live Update &amp APP Shop

Конектори:

1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector, 2 x USB 2.0 Headers, 1 x USB 3.1 Gen1 Header, 1 x 24 pin ATX Power Connector

M.2 слот:

1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)

Аудио:

7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps

Форм-фактор:

Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm, Solid Capacitor design

Безжична мрежа:

Памет, слотове:

2 x DDR4 DIMM Slots, Max. capacity of system memory: 32GB, Dual Channel DDR4 Memory Technology, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Описание

Дънна платка Asrock H310CM-HDV/M.2
