Дънна платка Asrock B460M-ITX/ac Asrock B460M-ITX/ ... ac Виж още

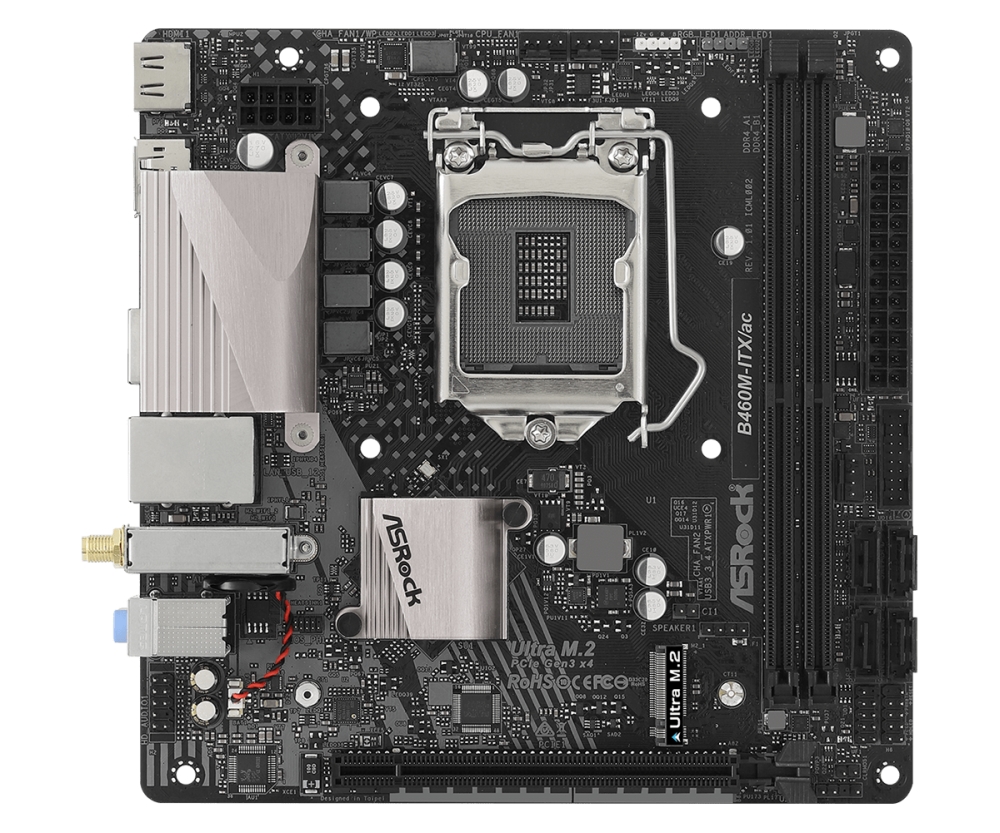

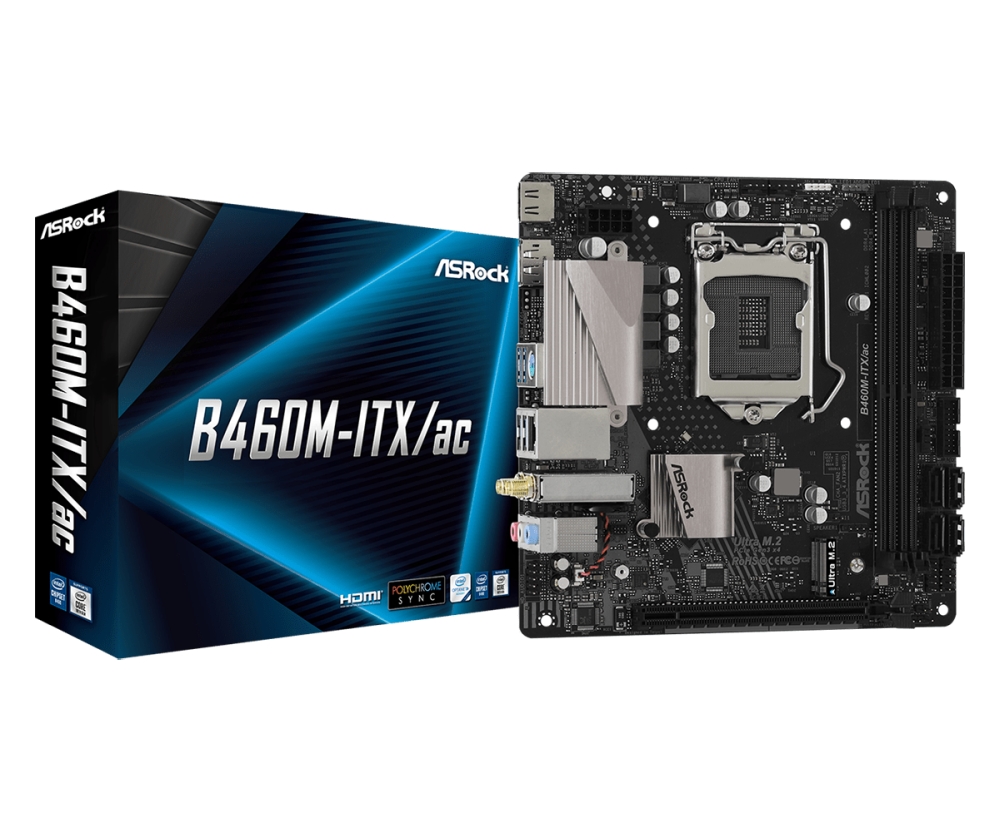

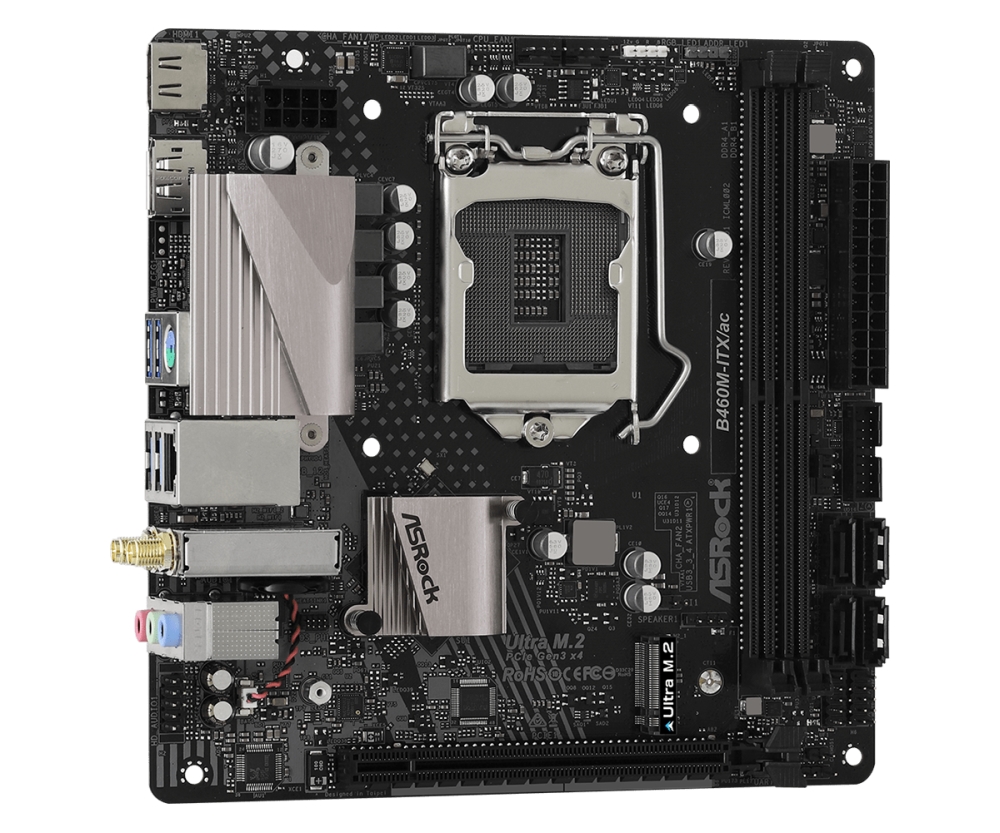

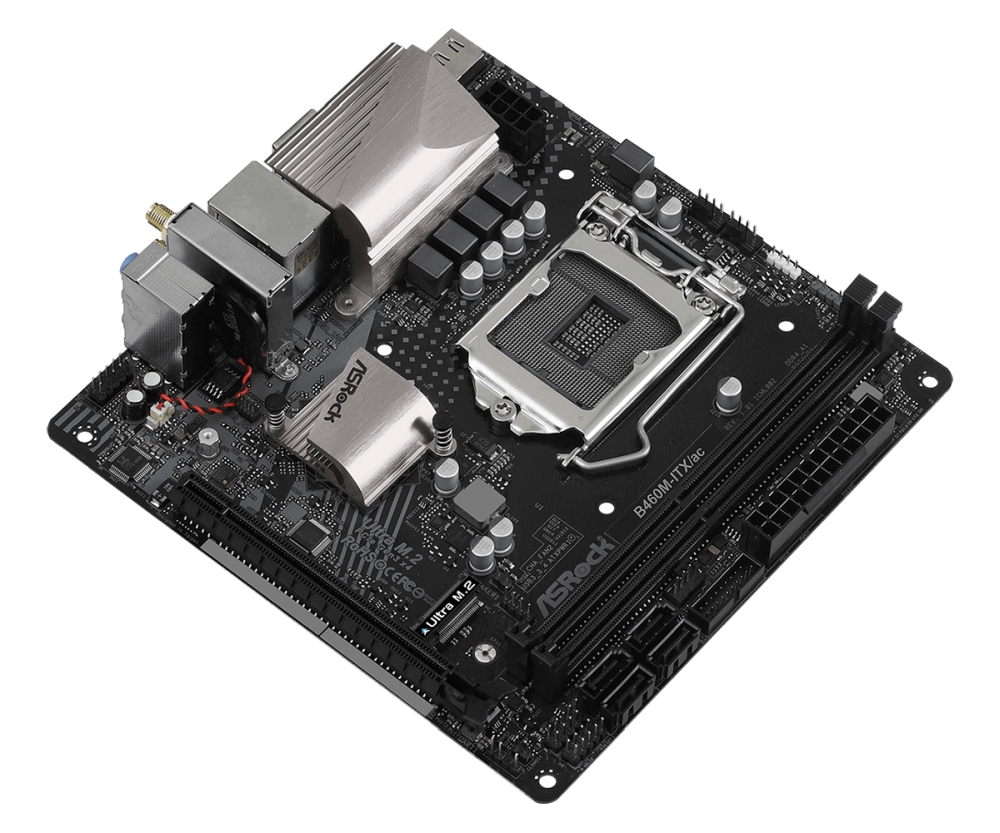

Name: Дънна платка Asrock B460M-ITX/ac Asrock B460M-ITX/ac
Brand: ASROCK
SKU: ASROCK-90-MXBCS0-A0UAYZ
Price: 183.00000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXBCS0-A0UAYZ

danna-platka-asrock-b460m-itx-ac-asrock-90-mxbcs0-a0uayz

0 ревюта | 0 въпроса

Гаранция 36 месеца
Памет, слотове 2 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Max. capacity of system memory: 64GB
Специални функции ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
Операционна система Microsoft Windows 10 64-bit
Аудио 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection

Сравни

183.00 лв

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Ревюта Въпроси и отговори

Характеристики

Чипсет:

Intel B460

Операционна система:

Microsoft Windows 10 64-bit

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment

Форм-фактор:

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm Solid Capacitor design

Памет, слотове:

2 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Max. capacity of system memory: 64GB

Процесор:

Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology

Други:

Certificate: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

Слотове:

1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

Аудио:

7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection

Специални функции:

ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop

Софтуер:

ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN

Интерфейс:

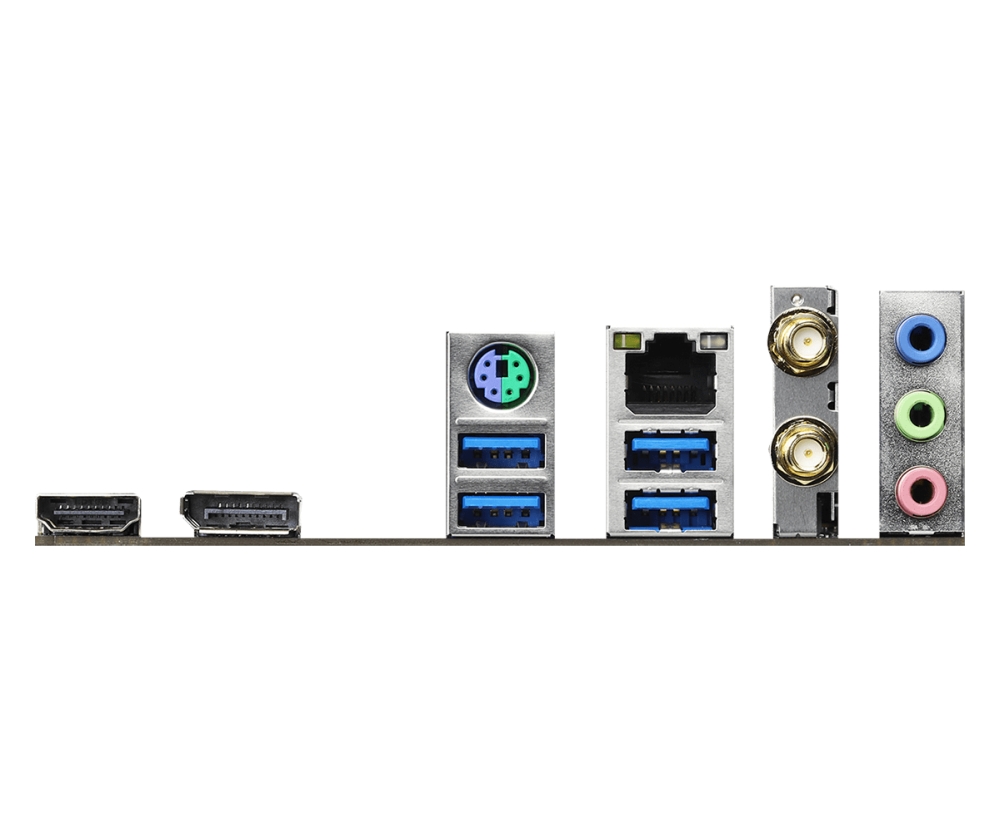

2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Серия:

ITX/ac

Конектори:

1xChassis Intrusion Header, 1xRGB LED Header, 1xAddressable LED Header, 1xCPU FanConn.(4-pin), 1xChassis FanConn.(4-pin), 1xChassis/Water Pump FanConn.(4-pin), 1x24pin ATX and 1x8pin 12V PowerConnector, 1xFrontPanelAudio Conn., 1xUSB 2.0 and 1xUSB 3.2

Мрежа:

Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

M.2 слот:

1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Гаранция:

36 месеца
