Операционна система:
Microsoft Windows 10 64-bit
BIOS:
128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment.
Форм-фактор:
ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm Solid Capacitor design
Памет, слотове:
4 x DDR4 DIMM Slots Max. capacity of system memory: 128GB Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode)
Процесор:
Intel Socket 1200
Други:
ASRock Live Update & APP Shop
Слотове:
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1) dual at x16 (PCIE1) / x4 (PCIE3) 2 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX and CrossFireX 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Аудио:
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio.
Специални функции:
ASRock Super Alloy ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Ultra M.2 ASRock POST Status Checker ASRock Full Spike Protection
Софтуер:
ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock Key Master ASRock XFast LAN.
Интерфейс:

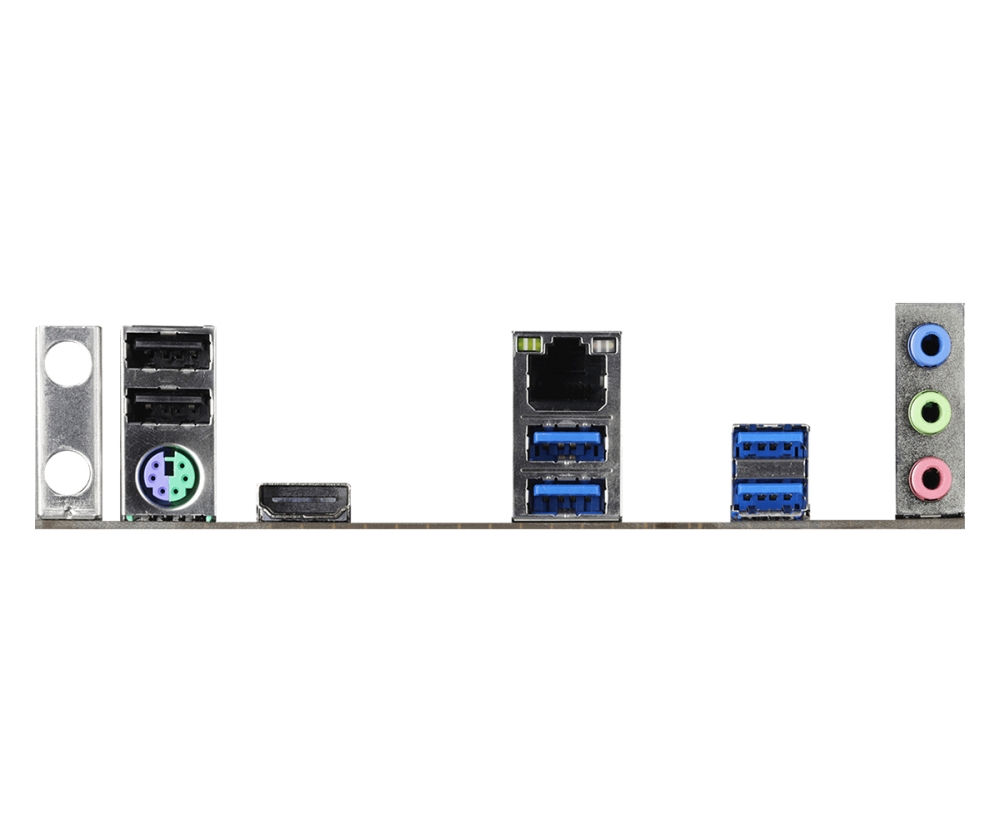

1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED HD Audio Jacks: Line in / Front Speaker / Microphone.
Конектори:
1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector 2 x USB 2.0 Headers 2 x USB 3.2 Gen1 He
Мрежа:
Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
M.2 слот:
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17)
