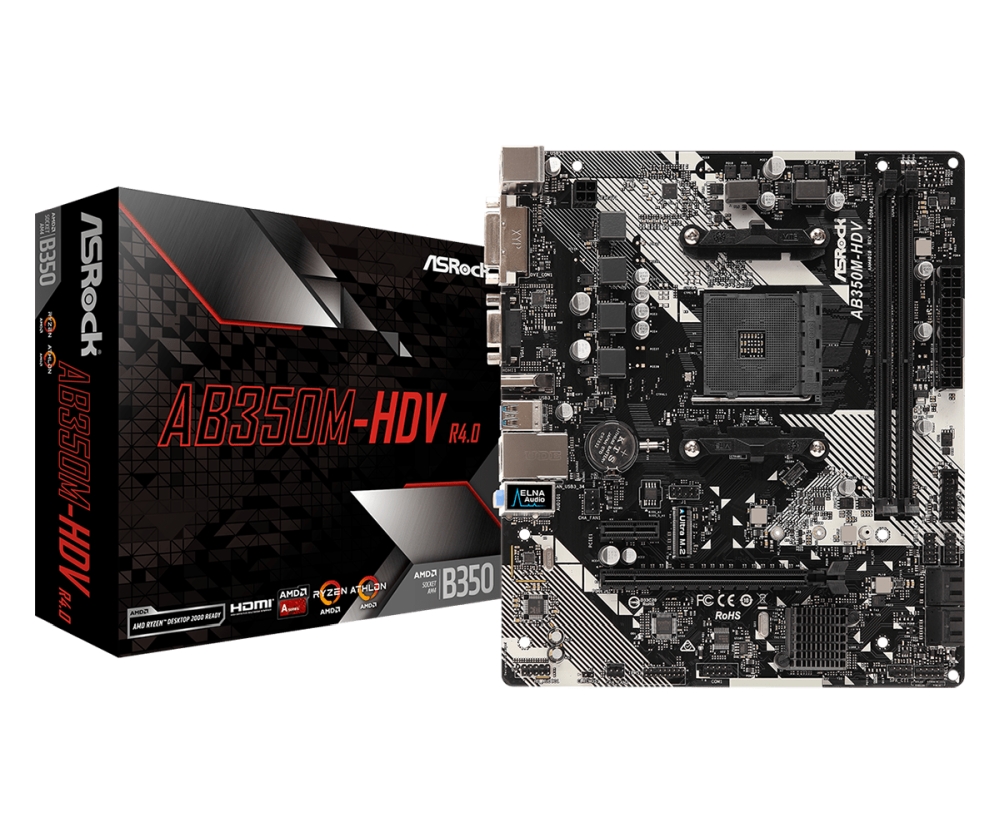

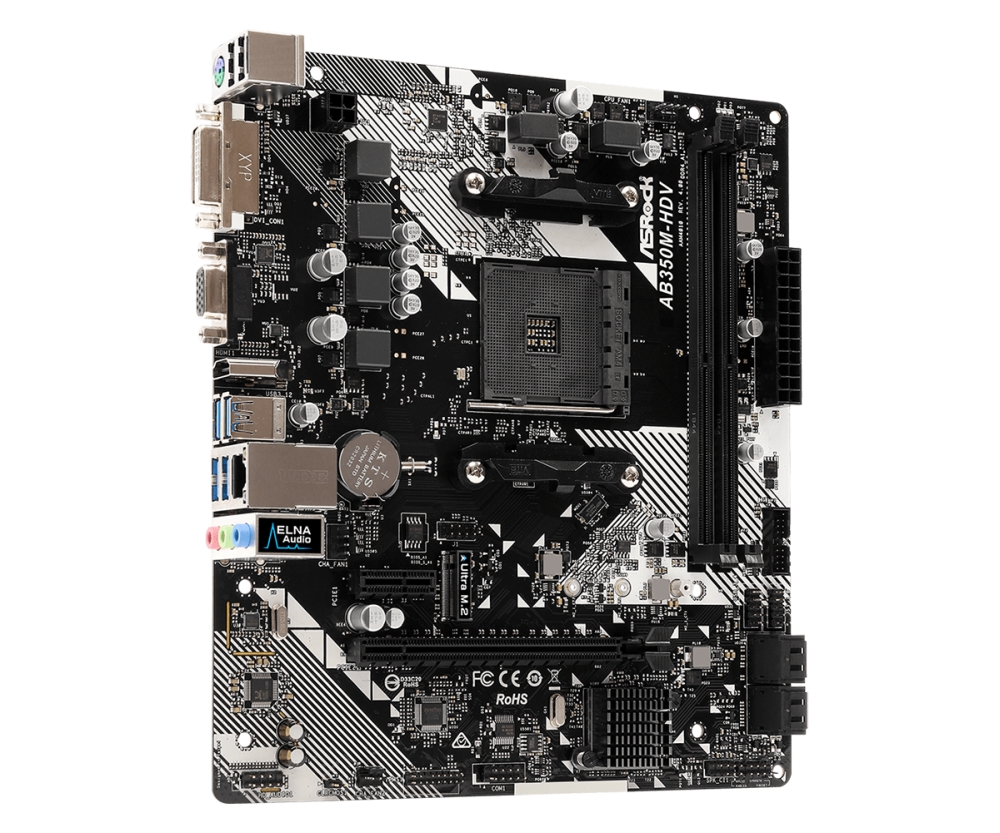

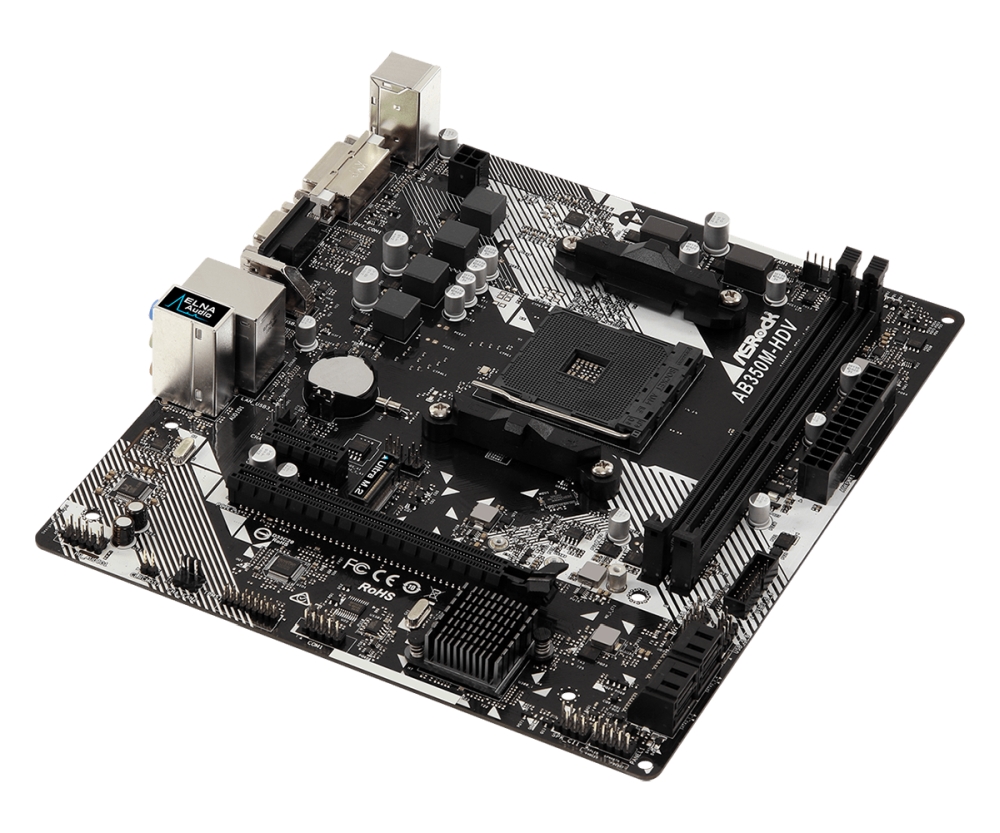

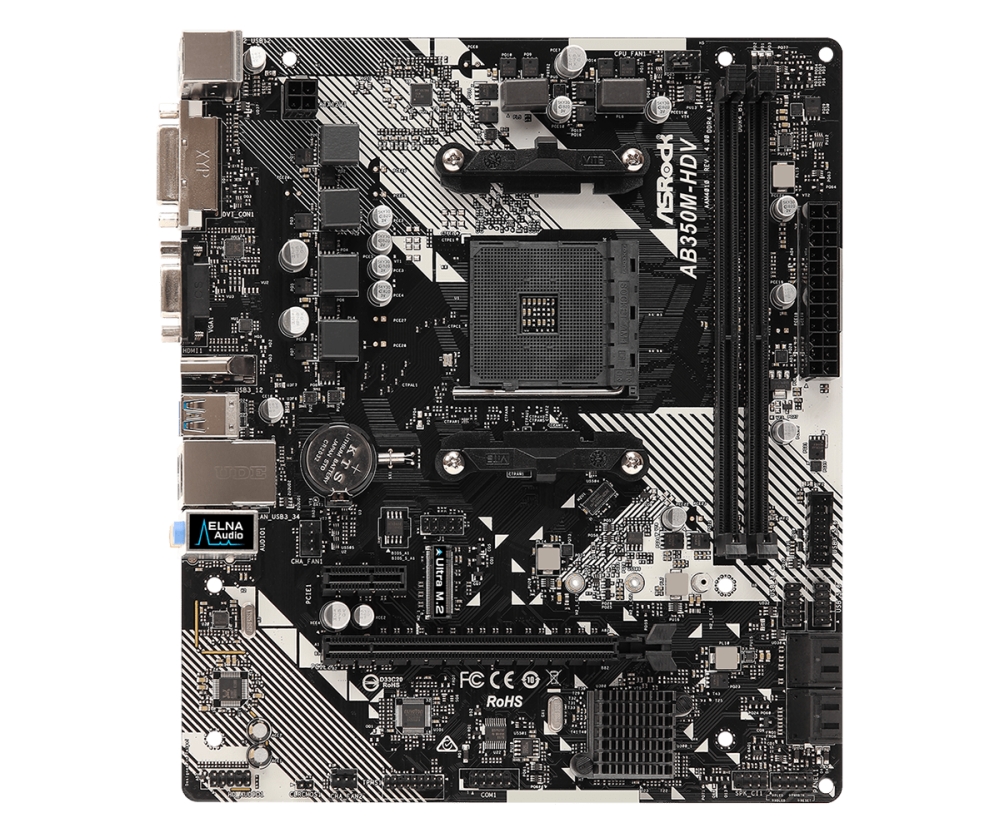

Дънна платка Asrock AB350M-HDV R4.0

Name: Дънна платка Asrock AB350M-HDV R4.0
Brand: ASROCK
SKU: ASROCK-90-MXB990-A0UAYZ
Price: 84.89000000000000056843 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXB990-A0UAYZ

danna-platka-asrock-ab350m-hdv-r4-0-asrock-90-mxb990-a0uayz

0 ревюта | 0 въпроса

Слотове AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs: PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) AMD Athlo
Чипсет AMD Promontory B350
Мрежа PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111GR, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Памет, слотове 2 x DDR4 DIMM Slots, Max. capacity of system memory: 32GB, Dual Channel DDR4 Memory Technology
Аудио 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps

Сравни

101.87 лв.

(-17%)

52.08 €

84.89 лв.

43.40 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Серия:

HDV

Чипсет:

AMD Promontory B350

Процесор:

AMD AM4 Socket

Мрежа:

PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111GR, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

M.2 слот:

1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Конектори:

1 x COM Port Header, 1 x TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.1 Gen1 Header.

Слотове:

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs: PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) AMD Athlo

Интерфейс:

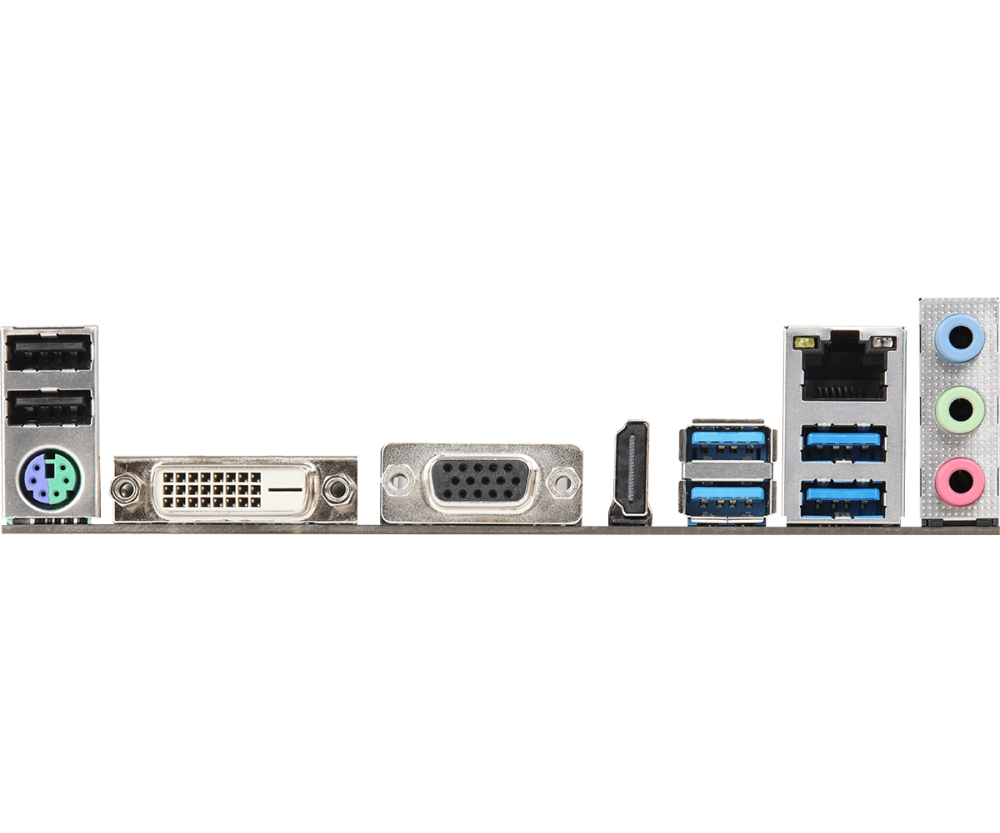

1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone

Памет, слотове:

2 x DDR4 DIMM Slots, Max. capacity of system memory: 32GB, Dual Channel DDR4 Memory Technology

Софтуер:

ASRock A-Tuning, ASRock APP Charger, ASRock XFast LAN

Аудио:

7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection, ELNA Audio Caps

Форм-фактор:

Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm

Операционна система:

Microsoft Windows 10 64-bit

Специални функции:

ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 &amp SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update &amp APP Shop

Описание

Дънна платка Asrock AB350M-HDV R4.0
